HHarken 60mm Element Double Cheek/ Foot Block - 6271
The Harken Element blocks introduce sideplates that combine forged aluminum and compound curves for strength.
They are simultaneously contemporary and very robust. Element Block design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size the Element Block is priced significantly lower, than our previously least expensive blocks. Whilst maintaining key important features.
Key Features
- Shackle blocks lock in two directions or swivel to keep line from twisting
- Removable headpost lock allows shackle to be fixed or to swivel
- Side plates are hardcoat-anodized to resist corrosion for years
- Side plates combine metal construction forged into compound curves to protect the sheave
- The proven bearing system runs on tough composite structure for less corrosion and long life
- Sheave is designed to achieve load targets with the least amount of material possible to help keep the price competative
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Please note: This product comes with a lead time expected to be up to 10 working days.
Specifications
- Height - 55mm
- Sheave - 60mm
- Length - 102mm
- Weight - 265g
- Maximum line - 14mm
- Fasteners - 8mm
- Maximum working load - 725kg
- Breaking load - 1450kg

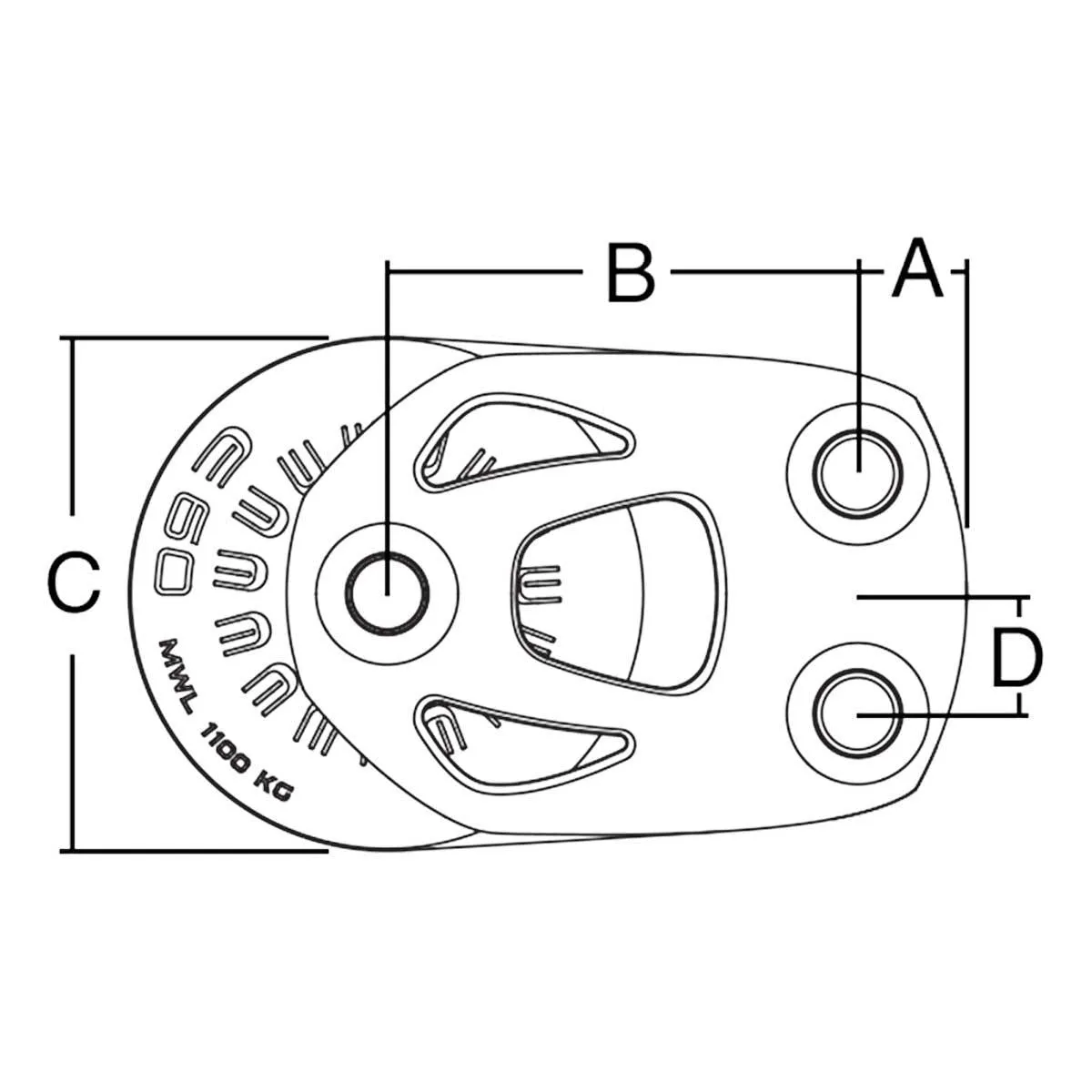

- A - 12.5mm or 1/2in
- B - 54.5mm or 2 5/32in
- C - 60mm or 2 3/8in
- D - 14mm or 9/16in
